Masina de etansare a filmului cu cusaturi curbate

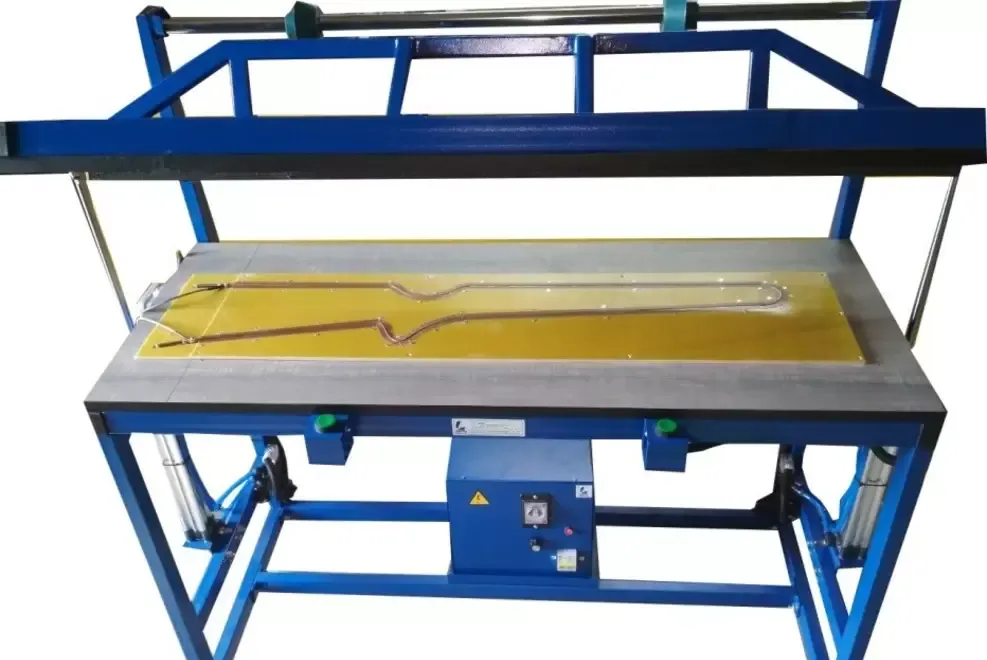

The equipment is a free-standing welded structure building 1 with elements placed on it

- a working table with a sealing tool of pulsed heating of a given configuration 2

- a pressure plate with a damper coating 3 and a pneumatic drive for lifting and lowering the plate

- control unit for sealing and cutting modes 4

- control system 5

Description of work

The film material is placed by the operator on the working table of the installation covering the sealing tool

By simultaneously pressing the buttons 6 the operator sets in motion a pneumatic drive that lowers the pressure plate onto the work table and presses the film material At the moment the plate is pressed against the surface of the desktop the pulse heating of the tool is automatically switched on according to the sealing parameters set on the control unit At the end of the set sealing/cutting time the upper traverse automatically returns to its original position

The operator removes the finished product and the flash film puts the film on the table to repeat the process

Specifications

Pressure plate - 1500 x 500 mm

Tool - special curvilinear

Tool heating - pulsed

Quantity of tools - 2

Seam - detachable

Seam width - up to 1 mm

Welding time - adjustable

Drive - pneumatic

Connection - 220 V 50 Hz 6 atm

Welding force - 200-250 kg

Management - push-button post

Sealing cycle time - no more than 15 sec

Operator - 1 person

Overall dimensions LxWxH - 1500 x 700 x 1500 mm

Weight - up to 100 kg

The cost of installation is including customs clearance of equipment - 3950 Euro

Terms of delivery FCA Kyiv Ukraine

Warranty 12 months
